mirror of https://github.com/joe-scotto/scottokeebs.git synced 2026-08-24 10:14:29 -05:00
Code Issues Packages Projects Releases Wiki Activity

Finalize ScottoStarter

Browse Source
This commit is contained in:
Joe Scotto
2023-06-14 15:41:06 -04:00
parent 0cfad0da9f
commit acb9ddd685
22 changed files with 36327 additions and 18875 deletions
Download Patch File Download Diff File Expand all files Collapse all files
ScottoStarter/Case/ScottoStarter - Case.step
+3365 -3553
View File
File diff suppressed because it is too large Load Diff
ScottoStarter/Case/ScottoStarter - Case.stl
BIN
View File
Binary file not shown.
ScottoStarter/Case/ScottoStarter - Plate.step
+16582 -9676
View File
File diff suppressed because it is too large Load Diff
ScottoStarter/Case/ScottoStarter - Plate.stl
BIN
View File
Binary file not shown.
ScottoStarter/Case/ScottoStarter.shapr
BIN
View File
Binary file not shown.
ScottoStarter/Case/V1/ScottoStarter - Case.step
+3647
View File
File diff suppressed because it is too large Load Diff
ScottoStarter/Case/V1/ScottoStarter - Case.stl
BIN
View File
Binary file not shown.
ScottoStarter/Case/V1/ScottoStarter - Plate.step
+9925
View File
File diff suppressed because it is too large Load Diff
ScottoStarter/Case/V1/ScottoStarter - Plate.stl
BIN
View File
Binary file not shown.
ScottoStarter/Case/V1/ScottoStarter.shapr
BIN
View File
Binary file not shown.
ScottoStarter/Case/kle.json
+88
View File
@@ -0,0 +1,88 @@
[
[
"0,0",
"0,1",
"0,2",
"0,3",
"0,4",
"0,5",
"0,6",
"0,7",
"0,8",
"0,9",
{
"w": 1.5
},
"0,10"
],
[
"1,0",
"1,1",
"1,2",
"1,3",
"1,4",
"1,5",
"1,6",
"1,7",
"1,8",
"1,9",
{
"w": 1.5
},
"1,10"
],
[
"2,0",
"2,1",
"2,2",
"2,3",
"2,4",
"2,5",
"2,6",
"2,7",
"2,8",
"2,9",
{
"w": 1.5
},
"2,10"
],
[
"3,0",
"3,1",
"3,2",
"3,3",
"3,4",
"3,5",
"3,6",
"3,7",
"3,8",
"3,9",
{
"w": 1.5
},
"3,10"
],
[
{
"w": 1.5
},
"4,0",
"4,1",
"4,2",
{
"w": 3
},
"4,4",
"4,7",
"4,8",
{
"w": 1.5
},
"4,9",
{
"w": 1.5
},
"4,10"
]
]
ScottoStarter/Firmware/default.hex
+844 -1022
View File
File diff suppressed because it is too large Load Diff
ScottoStarter/Firmware/vial.hex
+1707
View File
File diff suppressed because it is too large Load Diff
ScottoStarter/Firmware/vial.vil
+1
View File
@@ -0,0 +1 @@
{"version": 1, "uid": 6619897686829564753, "layout": [[["KC_1", "KC_2", "KC_3", "KC_4", "KC_5", "KC_6", "KC_7", "KC_8", "KC_9", "KC_0", "KC_BSPACE"], ["KC_Q", "KC_W", "KC_E", "KC_R", "KC_T", "KC_Y", "KC_U", "KC_I", "KC_O", "KC_P", "KC_TAB"], ["KC_A", "KC_S", "KC_D", "KC_F", "KC_G", "KC_H", "KC_J", "KC_K", "KC_L", "KC_SCOLON", "KC_QUOTE"], ["LSFT_T(KC_Z)", "KC_X", "KC_C", "KC_V", "KC_B", "KC_N", "KC_M", "KC_COMMA", "KC_DOT", "RSFT_T(KC_SLASH)", "KC_ENTER"], ["KC_LCTRL", "KC_LGUI", "KC_LALT", -1, "KC_SPACE", -1, -1, "MO(1)", "MO(2)", "KC_ESCAPE", "KC_CAPSLOCK"]], [["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_DELETE"], ["LSFT(KC_MINUS)", "KC_MINUS", "LSFT(KC_EQUAL)", "KC_EQUAL", "LSFT(KC_SCOLON)", "KC_GRAVE", "KC_MRWD", "KC_MPLY", "KC_MFFD", "KC_NO", "KC_TAB"], ["LSFT(KC_LBRACKET)", "LSFT(KC_9)", "LSFT(KC_0)", "LSFT(KC_RBRACKET)", "LSFT(KC_BSLASH)", "KC_ESCAPE", "KC_LEFT", "KC_UP", "KC_DOWN", "KC_RIGHT", "KC_QUOTE"], ["LSFT_T(KC_LBRACKET)", "KC_QUOTE", "LSFT(KC_QUOTE)", "KC_RBRACKET", "KC_SCOLON", "LSFT(KC_GRAVE)", "KC_VOLD", "KC_MUTE", "KC_VOLU", "RSFT_T(KC_BSLASH)", "KC_ENTER"], ["KC_LCTRL", "KC_LGUI", "KC_LALT", -1, "KC_SPACE", -1, -1, "KC_TRNS", "KC_TRNS", "KC_ESCAPE", "KC_CAPSLOCK"]], [["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_BSPACE"], ["LSFT(KC_1)", "LSFT(KC_2)", "LSFT(KC_3)", "LSFT(KC_4)", "LSFT(KC_5)", "LSFT(KC_6)", "LSFT(KC_7)", "LSFT(KC_8)", "KC_CAPSLOCK", "KC_BSPACE", "KC_TAB"], ["KC_1", "KC_2", "KC_3", "KC_4", "KC_5", "KC_6", "KC_7", "KC_8", "KC_9", "KC_0", "KC_QUOTE"], ["KC_LSHIFT", "KC_NO", "KC_NO", "KC_NO", "MO(3)", "KC_NO", "KC_NO", "KC_COMMA", "KC_DOT", "RSFT_T(KC_SLASH)", "KC_ENTER"], ["KC_LCTRL", "KC_LGUI", "KC_LALT", -1, "KC_SPACE", -1, -1, "KC_TRNS", "KC_TRNS", "KC_ESCAPE", "KC_CAPSLOCK"]], [["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_BSPACE"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO", 20484, "KC_TAB"], ["KC_F1", "KC_F2", "KC_F3", "KC_F4", "KC_F5", "KC_F6", "KC_F7", "KC_F8", "KC_F9", "KC_F10", "KC_QUOTE"], ["KC_F11", "KC_NO", "KC_NO", "RESET", "KC_TRNS", "KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_F12", "KC_ENTER"], ["KC_LCTRL", "KC_LGUI", "KC_LALT", -1, "KC_SPACE", -1, -1, "KC_TRNS", "KC_TRNS", "KC_ESCAPE", "KC_CAPSLOCK"]]], "encoder_layout": [[], [], [], []], "layout_options": -1, "macro": [[], [], [], [], [], [], [], [], [], [], [], [], [], [], [], []], "vial_protocol": 5, "via_protocol": 9, "tap_dance": [["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", 135]], "combo": [["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"], ["KC_NO", "KC_NO", "KC_NO", "KC_NO", "KC_NO"]], "key_override": [{"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}, {"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}, {"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}, {"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}, {"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}, {"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}, {"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}, {"trigger": "KC_NO", "replacement": "KC_NO", "layers": 65535, "trigger_mods": 0, "negative_mod_mask": 0, "suppressed_mods": 0, "options": 7}], "settings": {"1": 0, "2": 50, "3": 0, "4": 175, "5": 5, "6": 5000, "7": 135, "8": 3, "9": 10, "10": 20, "11": 8, "12": 10, "13": 30, "14": 10, "15": 80, "16": 8, "17": 40, "18": 0, "19": 80, "20": 5, "21": 0}}
ScottoStarter/Plate/keyboard-layout.dxf
-4458
View File
File diff suppressed because it is too large Load Diff
ScottoStarter/Plate/keyboard-layout.json
-91
View File
@@ -1,91 +0,0 @@
[
[
{
"a": 7
},
"",
"",
"",
"",
"",
"",
"",
"",
"",
"",
{
"w": 1.5
},
""
],
[
"",
"",
"",
"",
"",
"",
"",
"",
"",
"",
{
"w": 1.5
},
""
],
[
"",
"",
"",
"",
"",
"",
"",
"",
"",
"",
{
"w": 1.5
},
""
],
[
"",
"",
"",
"",
"",
"",
"",
"",
"",
"",
{
"w": 1.5
},
""
],
[
{
"w": 1.5
},
"",
"",
"",
{
"w": 3
},
"",
"",
"",
{
"w": 1.5
},
"",
{
"w": 1.5
},
""
]
]
ScottoStarter/QMK/info.json
+4 -24
View File
@@ -12,22 +12,11 @@
"mousekey": true,
"nkro": true
},
"build": {
"lto": true
},
"matrix_pins": {
// RX1, 4, 5, 6, 7, 8, 9, A3, A2, A1, TX0
"cols": [
"D2",
"D4",
"C6",
"D7",
"E6",
"B4",
"B5",
"F4",
"F5",
"F6",
"D3"
],
// A0, 15, 14, 16, 10
"cols": ["D2", "D4", "C6", "D7", "E6", "B4", "B5", "F4", "F5", "F6", "D3"],
"rows": ["F7", "B1", "B3", "B2", "B6"]
},
"url": "https://scottokeebs.com",
@@ -39,7 +28,6 @@
"layouts": {
"LAYOUT_ortho_4x11_8": {
"layout": [
// Row 1
{ "matrix": [0, 0], "x": 0, "y": 0 },
{ "matrix": [0, 1], "x": 1, "y": 0 },
{ "matrix": [0, 2], "x": 2, "y": 0 },
@@ -51,8 +39,6 @@
{ "matrix": [0, 8], "x": 8, "y": 0 },
{ "matrix": [0, 9], "x": 9, "y": 0 },
{ "matrix": [0, 10], "x": 10, "y": 0 },
// Row 2
{ "matrix": [1, 0], "x": 0, "y": 1 },
{ "matrix": [1, 1], "x": 1, "y": 1 },
{ "matrix": [1, 2], "x": 2, "y": 1 },
@@ -64,8 +50,6 @@
{ "matrix": [1, 8], "x": 8, "y": 1 },
{ "matrix": [1, 9], "x": 9, "y": 1 },
{ "matrix": [1, 10], "x": 10, "y": 1 },
// Row 3
{ "matrix": [2, 0], "x": 0, "y": 2 },
{ "matrix": [2, 1], "x": 1, "y": 2 },
{ "matrix": [2, 2], "x": 2, "y": 2 },
@@ -77,8 +61,6 @@
{ "matrix": [2, 8], "x": 8, "y": 2 },
{ "matrix": [2, 9], "x": 9, "y": 2 },
{ "matrix": [2, 10], "x": 10, "y": 2 },
// Row 4
{ "matrix": [3, 0], "x": 0, "y": 3 },
{ "matrix": [3, 1], "x": 1, "y": 3 },
{ "matrix": [3, 2], "x": 2, "y": 3 },
@@ -90,8 +72,6 @@
{ "matrix": [3, 8], "x": 8, "y": 3 },
{ "matrix": [3, 9], "x": 9, "y": 3 },
{ "matrix": [3, 10], "x": 10, "y": 3 },
// Row 5
{ "matrix": [4, 0], "x": 0, "y": 4 },
{ "matrix": [4, 1], "x": 1, "y": 4 },
{ "matrix": [4, 2], "x": 2, "y": 4 },
ScottoStarter/QMK/keymaps/vial/config.h
+27
View File
@@ -0,0 +1,27 @@
/*
Copyright 2023 Joe Scotto
This program is free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 2 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with this program. If not, see <http://www.gnu.org/licenses/>.
*/
#pragma once
// Define options
#define TAPPING_TERM 135
#define PERMISSIVE_HOLD
// Vial
#define VIAL_KEYBOARD_UID {0x51, 0x03, 0xE8, 0x58, 0xDF, 0x99, 0xDE, 0x5B}
#define VIAL_UNLOCK_COMBO_ROWS { 4, 4 }
#define VIAL_UNLOCK_COMBO_COLS { 0, 10 }
ScottoStarter/QMK/keymaps/vial/keymap.c
+52
View File
@@ -0,0 +1,52 @@
/*
Copyright 2023 Joe Scotto
This program is free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 2 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with this program. If not, see <http://www.gnu.org/licenses/>.
*/
#include QMK_KEYBOARD_H
const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
[0] = LAYOUT_ortho_4x11_8(
KC_1, KC_2, KC_3, KC_4, KC_5, KC_6, KC_7, KC_8, KC_9, KC_0, KC_BSPC,
KC_Q, KC_W, KC_E, KC_R, KC_T, KC_Y, KC_U, KC_I, KC_O, KC_P, KC_TAB,
KC_A, KC_S, KC_D, KC_F, KC_G, KC_H, KC_J, KC_K, KC_L, KC_SCLN, KC_QUOT,
LSFT_T(KC_Z), KC_X, KC_C, KC_V, KC_B, KC_N, KC_M, KC_COMM, KC_DOT, RSFT_T(KC_SLSH), KC_ENT,
KC_LCTL, KC_LGUI, KC_LALT, KC_SPC, MO(1), MO(2), KC_ESC, KC_CAPS
),
[1] = LAYOUT_ortho_4x11_8(
KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_DEL,
KC_UNDS, KC_MINS, KC_PLUS, KC_EQL, KC_COLN, KC_GRV, KC_MRWD, KC_MPLY, KC_MFFD, KC_NO, KC_TAB,
KC_LCBR, KC_LPRN, KC_RPRN, KC_RCBR, KC_PIPE, KC_ESC, KC_LEFT, KC_UP, KC_DOWN, KC_RGHT, KC_QUOT,
LSFT_T(KC_LBRC), KC_QUOT, KC_DQUO, KC_RBRC, KC_SCLN, KC_TILD, KC_VOLD, KC_MUTE, KC_VOLU, RSFT_T(KC_BSLS), KC_ENT,
KC_LCTL, KC_LGUI, KC_LALT, KC_SPC, KC_TRNS, KC_TRNS, KC_ESC, KC_CAPS
),
[2] = LAYOUT_ortho_4x11_8(
KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_BSPC,
KC_EXLM, KC_AT, KC_HASH, KC_DLR, KC_PERC, KC_CIRC, KC_AMPR, KC_ASTR, KC_CAPS, KC_BSPC, KC_TAB,
KC_1, KC_2, KC_3, KC_4, KC_5, KC_6, KC_7, KC_8, KC_9, KC_0, KC_QUOT,
KC_LSFT, KC_NO, KC_NO, KC_NO, MO(3), KC_NO, KC_NO, KC_COMM, KC_DOT, RSFT_T(KC_SLSH), KC_ENT,
KC_LCTL, KC_LGUI, KC_LALT, KC_SPC, KC_TRNS, KC_TRNS, KC_ESC, KC_CAPS
),
[3] = LAYOUT_ortho_4x11_8(
KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_BSPC,
KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, KC_NO, TO(4), KC_TAB,
KC_F1, KC_F2, KC_F3, KC_F4, KC_F5, KC_F6, KC_F7, KC_F8, KC_F9, KC_F10, KC_QUOT,
KC_F11, KC_NO, KC_NO, QK_BOOT, KC_TRNS, KC_NO, KC_NO, KC_NO, KC_NO, KC_F12, KC_ENT,
KC_LCTL, KC_LGUI, KC_LALT, KC_SPC, KC_TRNS, KC_TRNS, KC_ESC, KC_CAPS
)
};
ScottoStarter/QMK/keymaps/vial/rules.mk
+2
View File
@@ -0,0 +1,2 @@
VIA_ENABLE = yes
VIAL_ENABLE = yes
ScottoStarter/QMK/keymaps/vial/vial.json
+80
View File
@@ -0,0 +1,80 @@
{
"matrix": {
"rows": 5,
"cols": 11
},
"layouts": {
"keymap": [
[
"0,0",
"0,1",
"0,2",
"0,3",
"0,4",
"0,5",
"0,6",
"0,7",
"0,8",
"0,9",
{ "w": 1.5 },
"0,10"
],
[
"1,0",
"1,1",
"1,2",
"1,3",
"1,4",
"1,5",
"1,6",
"1,7",
"1,8",
"1,9",
{ "w": 1.5 },
"1,10"
],
[
"2,0",
"2,1",
"2,2",
"2,3",
"2,4",
"2,5",
"2,6",
"2,7",
"2,8",
"2,9",
{ "w": 1.5 },
"2,10"
],
[
"3,0",
"3,1",
"3,2",
"3,3",
"3,4",
"3,5",
"3,6",
"3,7",
"3,8",
"3,9",
{ "w": 1.5 },
"3,10"
],
[
{ "w": 1.5 },
"4,0",
"4,1",
"4,2",
{ "w": 3 },
"4,4",
"4,7",
"4,8",
{ "w": 1.5 },
"4,9",
{ "w": 1.5 },
"4,10"
]
]
}
}
ScottoStarter/README.md
+3 -51
View File
@@ -1,55 +1,7 @@
# ScottoStarter
A 52 key ortholinear keyboard that is designed to help transition you into smaller layouts.
The ScottoStarter is a 52-key ortholinear keyboard designed to help ease the transition into smaller layouts.
You can read more about the components and how to build it [here](https://scottokeebs.com/blogs/keyboards/scottostarter-handwired-keyboard).
![ScottoStarter](https://user-images.githubusercontent.com/8194147/194448130-6270a86a-2794-474c-b43d-1042a35bd41a.jpg)

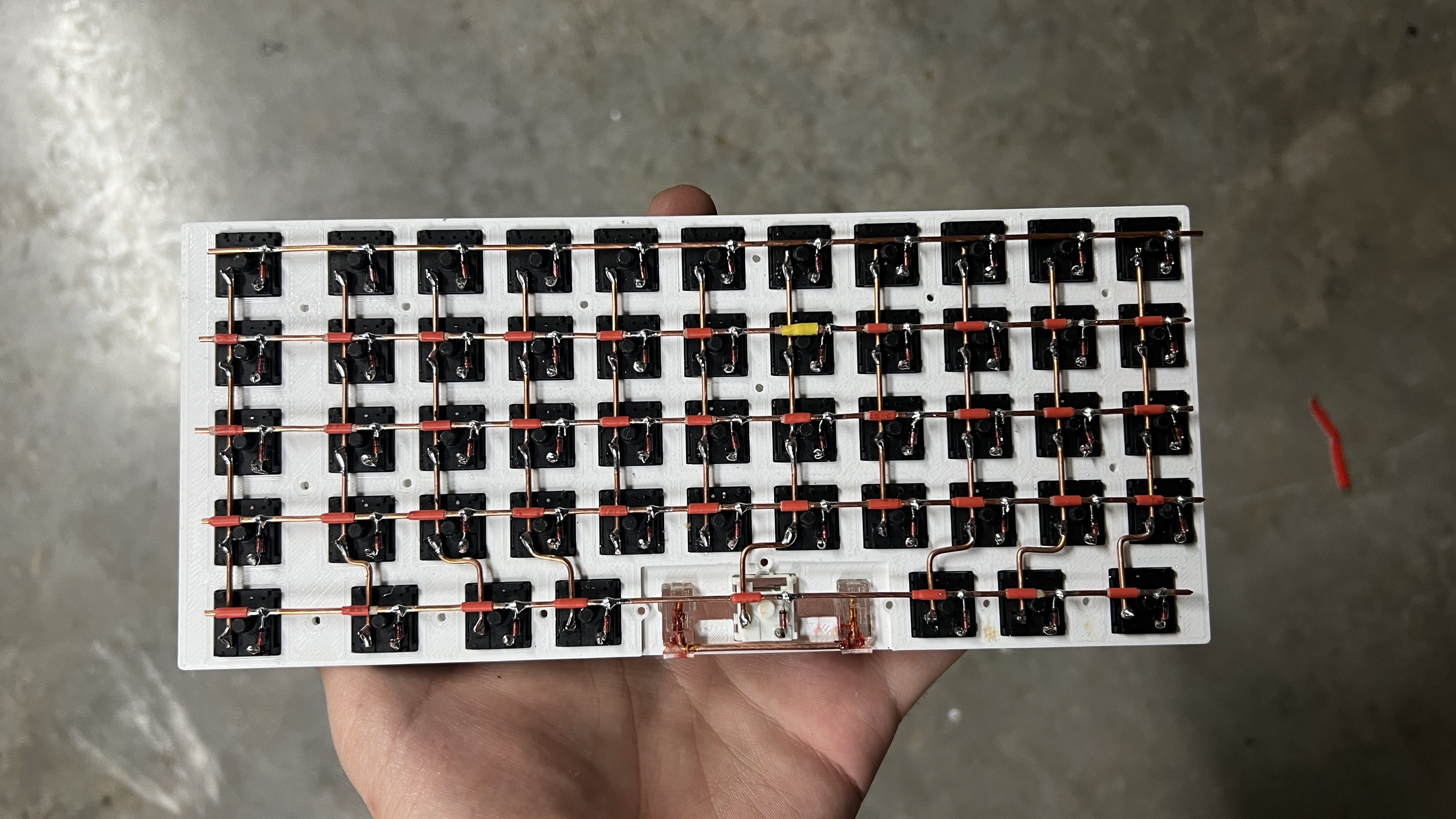

![Matrix](https://user-images.githubusercontent.com/8194147/194448158-ac15d897-9dd6-431e-ab2a-94d3c64ff069.jpg)

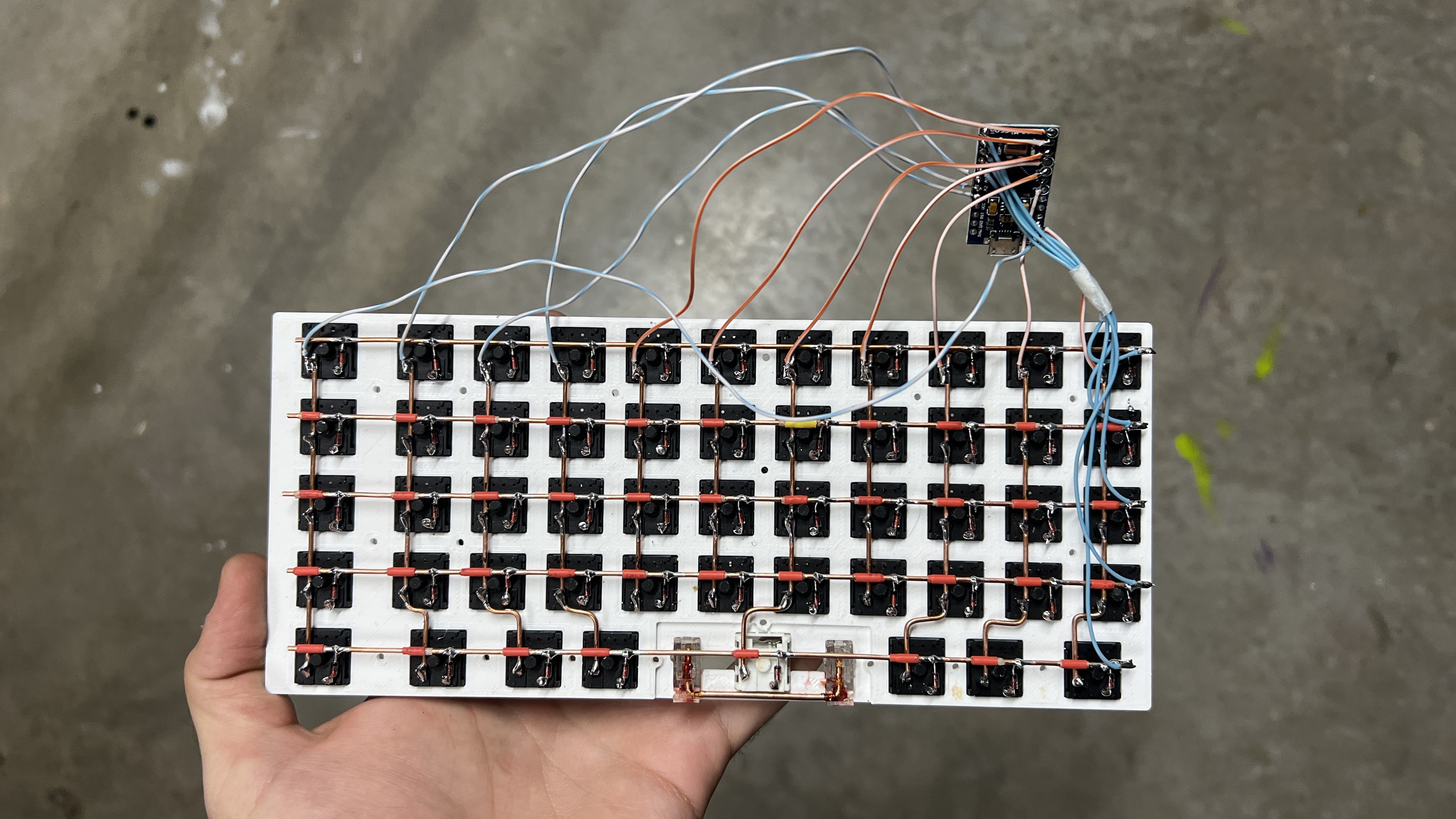

![Controller](https://user-images.githubusercontent.com/8194147/194448172-a8f095bc-6731-4647-859a-797a4201f8a1.jpg)
<!--
![ScottoStarter](https://user-images.githubusercontent.com/8194147/193435831-0216b09f-f500-457c-bb8a-a558330e786e.jpg)

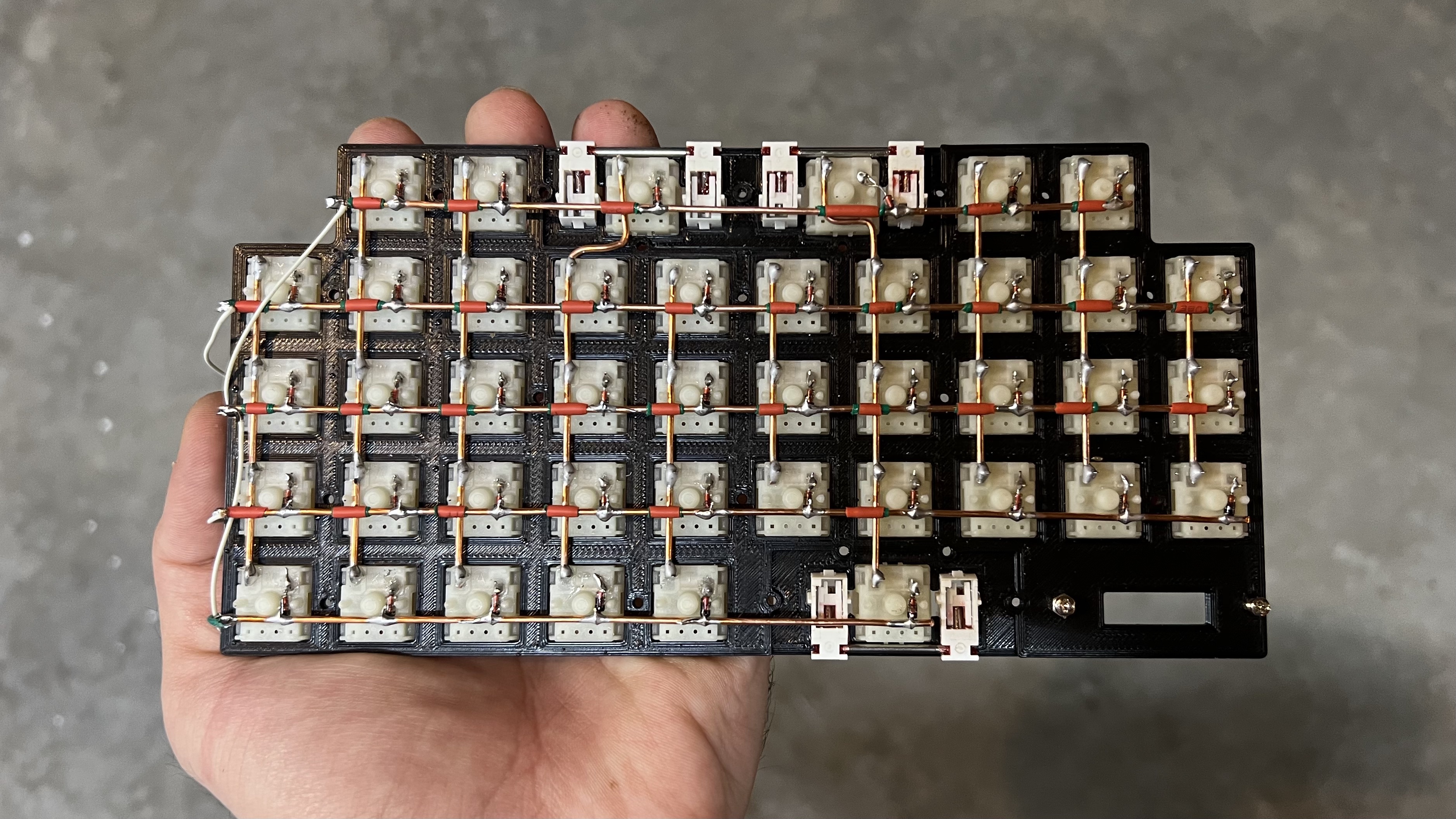

![Matrix](https://user-images.githubusercontent.com/8194147/193435827-86c512b3-368f-4385-937a-316ecfe61c94.jpg)

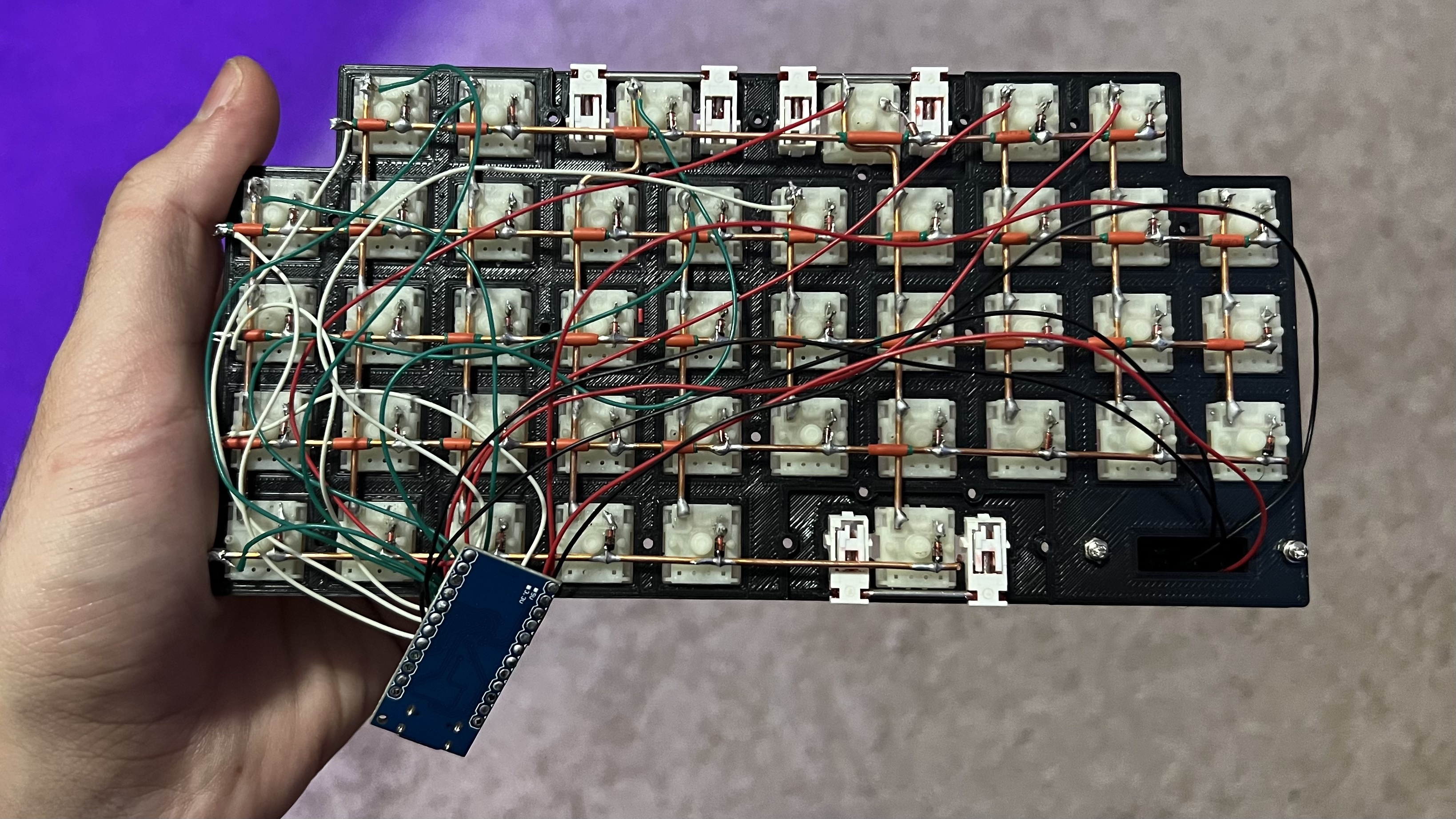

![Controller](https://user-images.githubusercontent.com/8194147/193435829-58c55a69-d7db-4ae8-ad00-207e046fd9d4.jpg) -->
# Parts
- 1x - [Arduino Pro Micro (Atmega32U4)](https://amzn.to/3LwgAUq)
- 1x - [3u Plate Mount Stabilizer](https://amzn.to/3xUEvHz)
- 52x - [1N4148 Diode](https://amzn.to/3DMbQZ5)
- 18x - [8mm M2 Spacer](https://amzn.to/3r1xdxO)
- 36x - [M2x6mm Screw](https://amzn.to/3r1xdxO)
- 52x - MX Switches
- 52x - Keycaps
- 44x - 1u
- 7x - 1.5uz
- 1x - 3u
# Pins
Top left to right. Pins refer to the number on the Pro Micro, for more info see [info.json](QMK/info.json).
- **Rows** - A0, 15, 14, 16, 10
- **Columns** - RX1, 4, 5, 6, 7, 8, 9, A3, A2, A1, TX0
# Case
The controller is simply hot glued into the bottom of the case. You may have to disable skirts and brims depending on the build volume of your printer.
- [Plate](Case/ScottoStarter%20-%20Plate.stl)
- [Case](Case/ScottoStarter%20-%20Case.stl)
# Stabilizer
The ScottoStarter uses a 3u spacebar, this isn't a unique size but you will have to source a 3u stabilizer wire or make one yourself. To make your own, take a piece of 14g wire and bend it at each stabilizer mounting point. It will take a bit of trial and error to get it perfect but it beats having to wait for one in the mail.
# Flashing
1. [Install QMK locally](https://github.com/qmk/qmk_firmware)
2. Make changes to the keymap if required.
3. Run `qmk flash -kb handwired/jscotto/scottostarter -km default -c`.
# License
<img style="height:22px!important;margin-left:3px;vertical-align:text-bottom;" src="https://mirrors.creativecommons.org/presskit/icons/cc.svg?ref=chooser-v1"><img style="height:22px!important;margin-left:3px;vertical-align:text-bottom;" src="https://mirrors.creativecommons.org/presskit/icons/by.svg?ref=chooser-v1"><img style="height:22px!important;margin-left:3px;vertical-align:text-bottom;" src="https://mirrors.creativecommons.org/presskit/icons/nc.svg?ref=chooser-v1"><img style="height:22px!important;margin-left:3px;vertical-align:text-bottom;" src="https://mirrors.creativecommons.org/presskit/icons/sa.svg?ref=chooser-v1"></a></p>
<p xmlns:cc="http://creativecommons.org/ns#" xmlns:dct="http://purl.org/dc/terms/"><a property="dct:title" rel="cc:attributionURL" href="https://github.com/joe-scotto/scottokeebs/tree/main/ScottoStarter">ScottoStarter</a> by <a rel="cc:attributionURL dct:creator" property="cc:attributionName" href="https://github.com/joe-scotto">Joe Scotto</a> is licensed under <a href="http://creativecommons.org/licenses/by-nc-sa/4.0/?ref=chooser-v1" target="_blank" rel="license noopener noreferrer" style="display:inline-block;">CC BY-NC-SA 4.0
